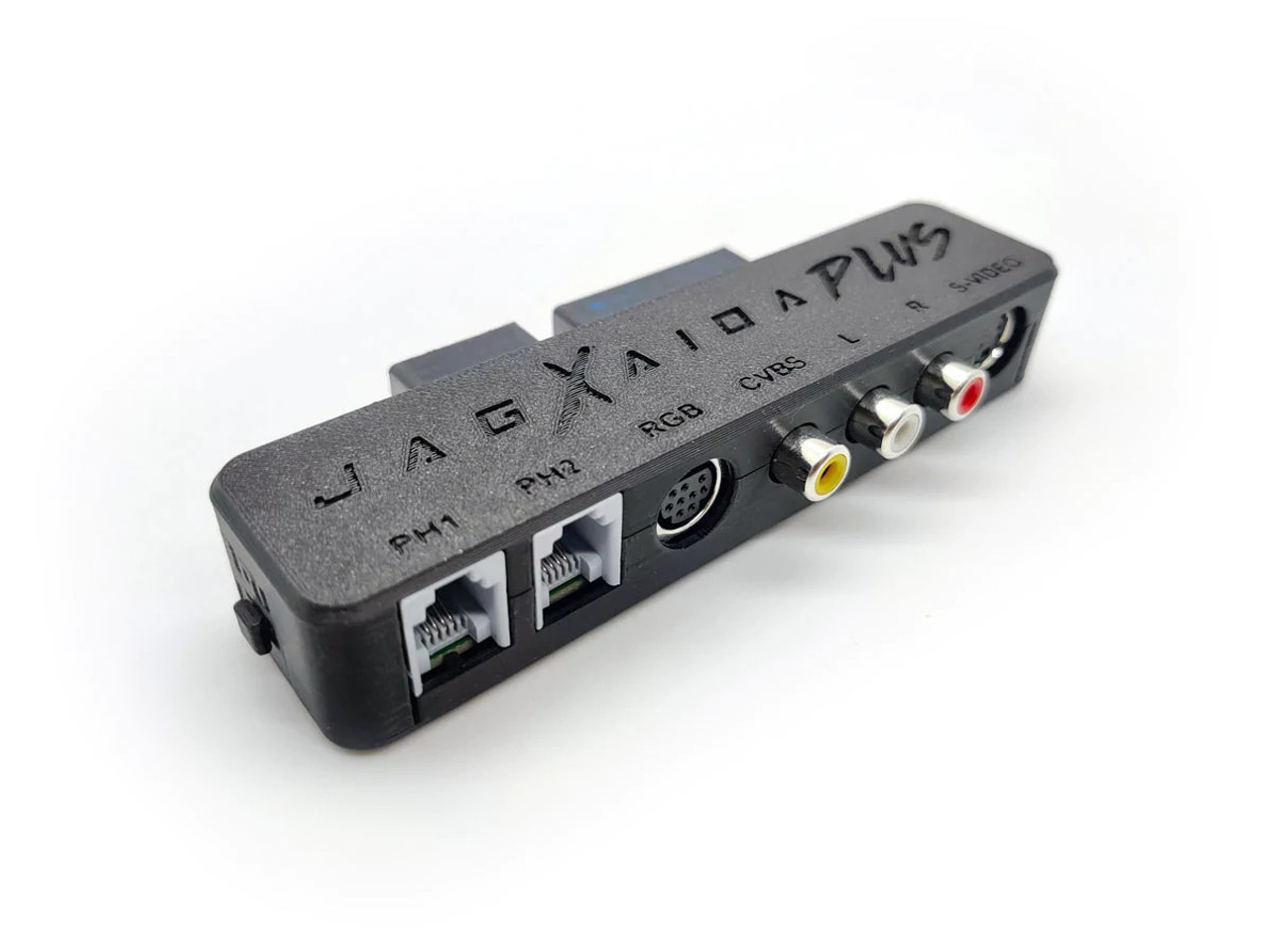

Jaguar All-in-one Analog (AIOA) Plus

New hardware to help your Jaguar ROAR!

The JagAIOA Plus by Humble Bazkooka is an all-in-one Analog Audio & Video plus network adapter for your Atari Jaguar. It allows you to connect standard S-Video, RCA Composite Video & Stereo Audio, and Genesis Model 2 AV cables (such as HD Retrovision or Scart) to your Jaguar. The JagAIOA Plus also includes JagLink support, which can be toggled off if needed.

Features:

• S-video out
• RCA Composite Video and Stereo Audio
• Onboard JagNet (JagLink) for networking
• No additional power source needed

Technical details:

• Boosted RGB signal which brings it up to Genesis standards and brightens the picture when used with properly built Genesis 2 Scart cables
• Safely output dual composite at the same time
• Slightly cleaner composite video when compared to non-amped version
• Less noise when using a scaler such as RetroTink 5x
• Networking works with RetroHQ’s Game Drive flash cartridge
• On / Off switch allowing you to boot RetroHQ’s Game Drive
• RGB(S) out through a Genesis Model 2 9-pin mini DIN

How to use JagAIOA Plus with RetroHQ’s Game Drive:

1. With the Jaguar turned off, slide the JagAIOA Plus switch to the OFF position
2. Boot up the Game Drive and start the game you want to play
3. Once the game is booted, slide the JagAIOA Plus switch to the ON position for network support
